Description
Technical Specifications
-
Maximum Power: 12.5 kVA (400V) / 10 kW (230V)
-
Rated/Nominal Power: 11.4 kVA (400V) / 9 kW (230V)
-
Voltage: 400V / 230V (Switchable/Full Power)
-
Frequency: 50 Hz
-
Current: 18A (400V) / 42A (230V)
-
Engine Model: EV80 (16 HP / 794 cc)
-
Engine Type: 4-stroke, air-cooled, direct injection diesel.
-
Oil Capacity: 2.27 Liters
-
Fuel Tank Capacity: 30 Liters
-
Runtime (at 50% load): 10 Hours
-
Noise Level (at 7m, 50% load): 72 dBA
Key Features
-

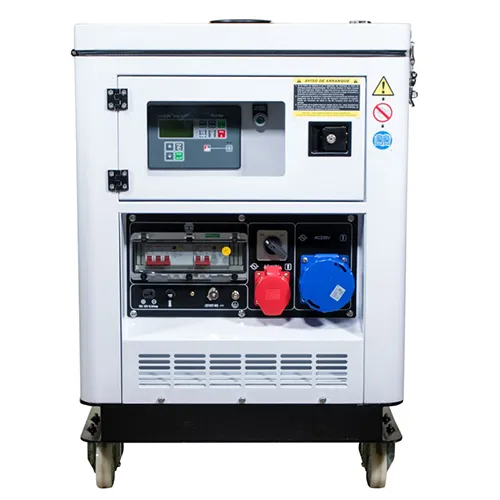

Control Panel: Equipped with a ComAp MRS10 digital display (higher grade than standard panels).
-
Starting System: Electric start (includes a 45 Ah battery).
-
Remote Start Ready: Prepared for signal start (call for startup function).
-
Pre-heating System: Includes a glow-plug system for easy starting in cold weather.
-
Protection Systems:
-
Low oil alarm with automatic engine shutdown.
-
Overload protection via intensity measurement.
-
30 mA differential for current leakage protection.
-
-
Outlets:
-
1 x PCE 5-pin (400V)
-
1 x 63A (230V) — Note: This high-amperage outlet allows you to pull the full single-phase power.
-
1 x 12V DC output.
-
Physical Attributes
-
Weight: 360 kg
-
Dimensions: 1360 x 650 x 980 mm.
-

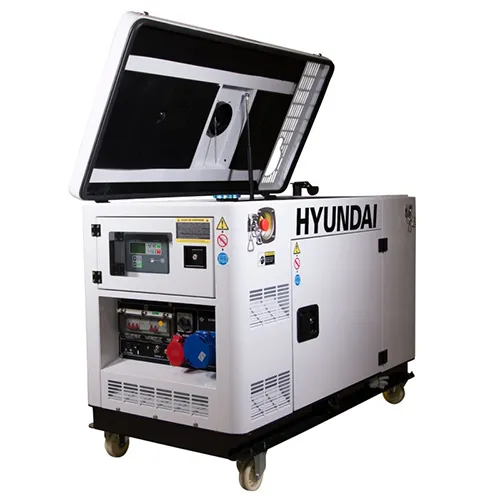

Build: Includes a double support base to reduce vibrations and a silent canopy for noise reduction.
