Description
PRIMARY SPECIFICATIONS
-
Standby Power: 165 kVA / 132 kW
-
Prime Power: 150 kVA / 120 kW
-
Year of Manufacture: 2017
-
Hours of Operation: 19,842 h
-
Voltage: 230/400 V (50 Hz)
-
Current: 216A (Prime) / 238A (Standby)
-
General Condition: Tested under load and fully certified.
CORE TECHNICAL DATA

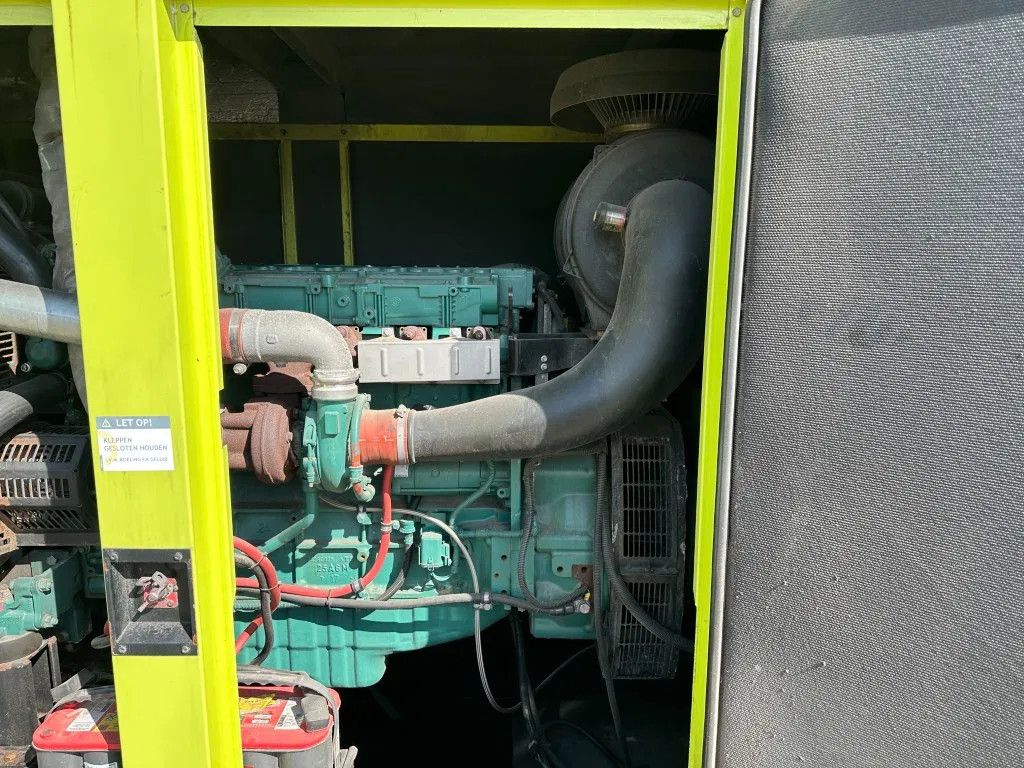

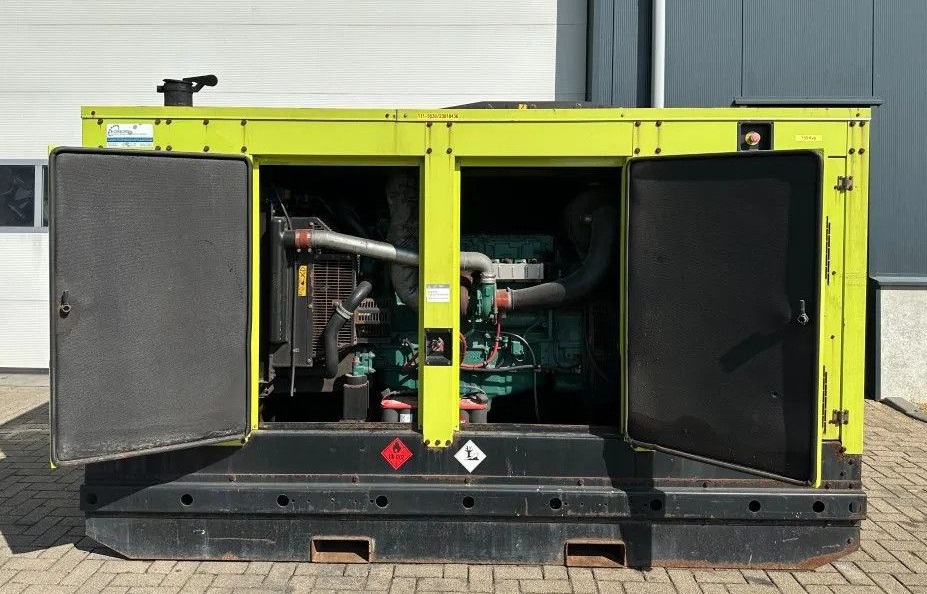

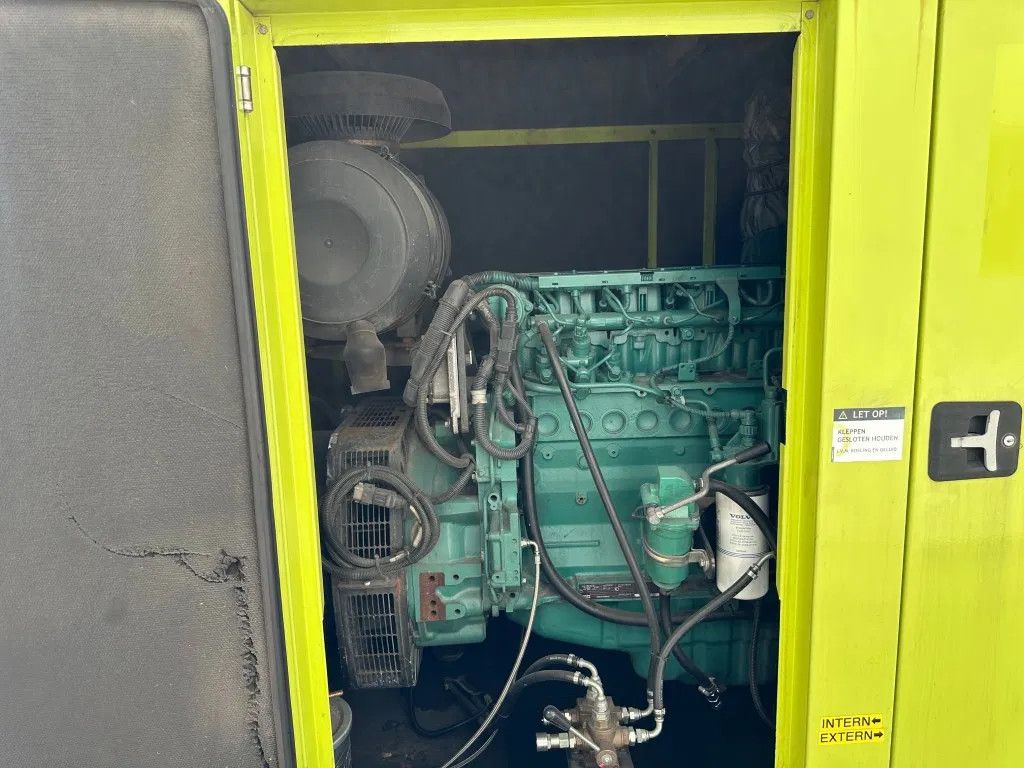

| Engine: Volvo Penta | Details |
| Model | TAD 751 GE |
| Configuration | 6-Cylinder, Turbocharged, Intercooled |
| Output | 151 kW / 203 HP |
| Cooling | Water-cooled |
| RPM | 1,500 rpm |
| Alternator: Leroy Somer | Details |
| Model | LSA 44.3L10 C 6/4 |
| Phases / Power Factor | 3-Phase / cos 0.8 |
| Efficiency | High-performance industrial grade |
SPEC FEATURES & EQUIPMENT
-

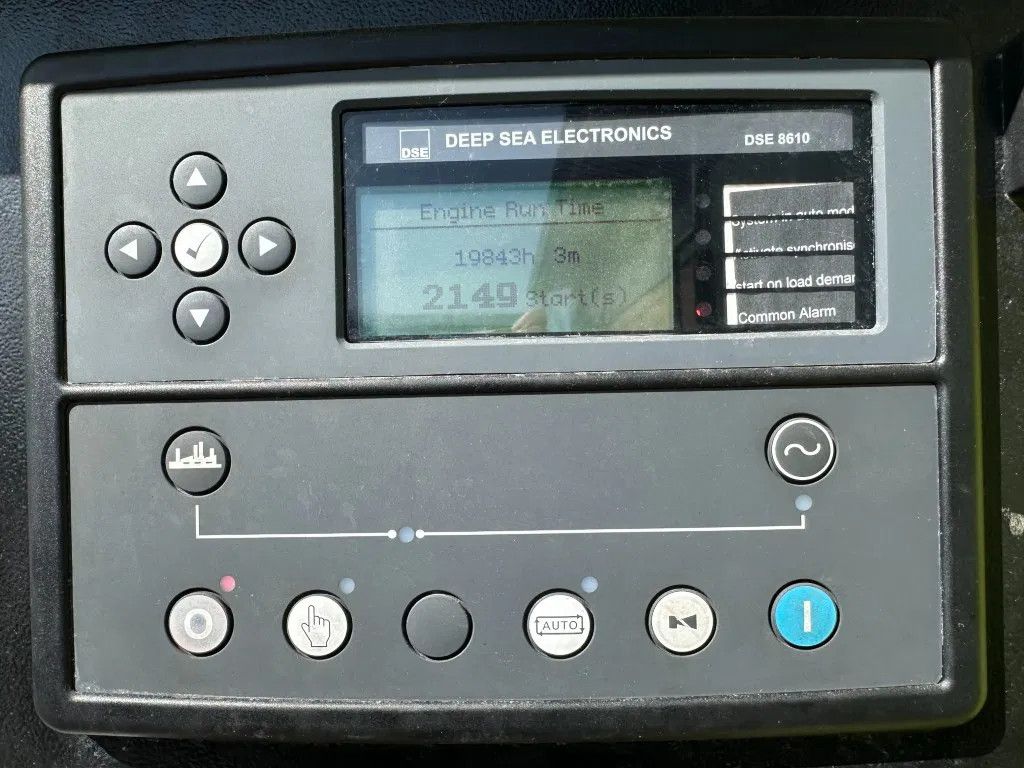

Advanced Control System: Equipped with a Deep Sea Electronics (DSE) digital controller for precise monitoring and auto-start capability.
-

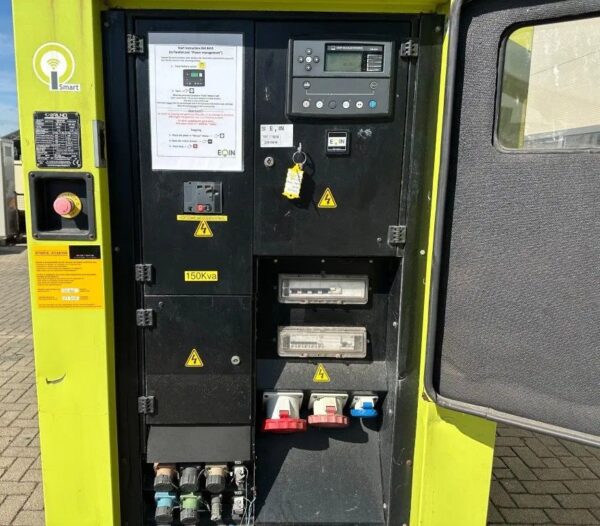

Integrated Distribution Panel: Full “Plug & Play” external socket array:
-
1 x 125A (400V)
-
1 x 63A (400V)
-
1 x 32A (230V)
-
Powerlock connections for high-current terminal output.
-
-

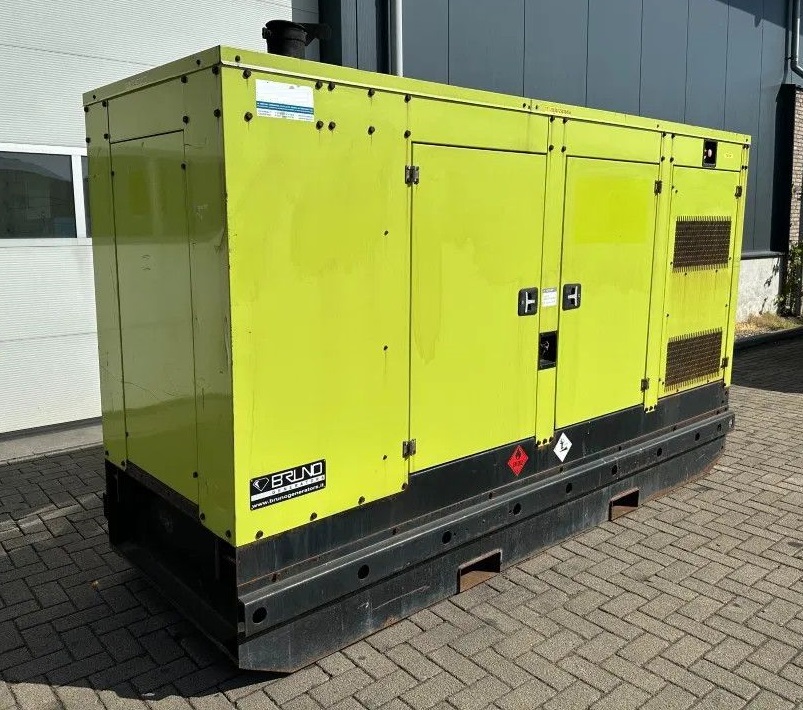

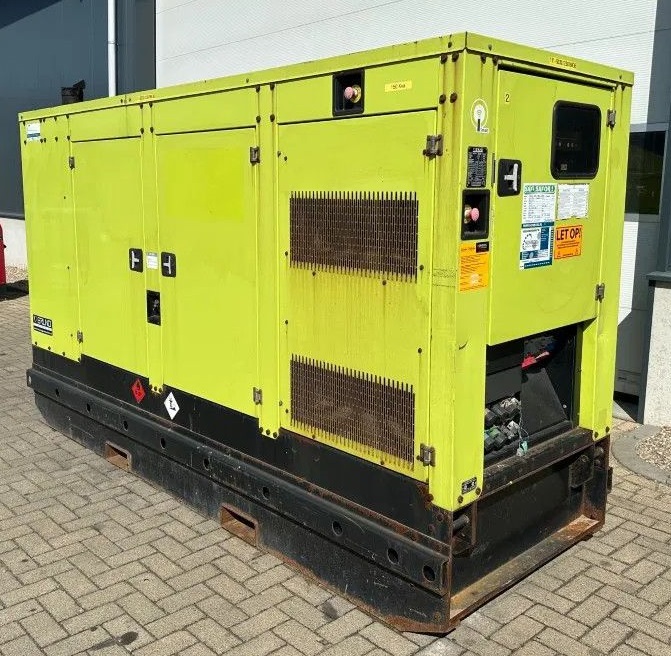

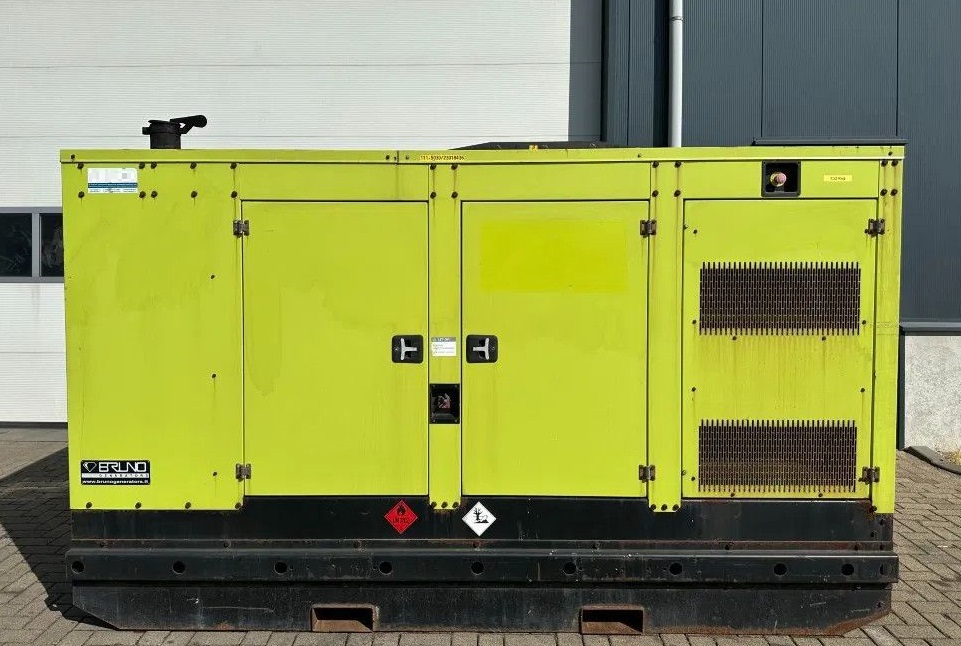

Ready Canopy: * Ultra-Silent sound-attenuated enclosure with internal exhaust system.
-
Bunded base (leak tray) to prevent environmental spills.
-
Forklift pockets for easy site maneuverability.
-
-
Fuel System: Large 175L internal tank + External fuel connection adapters for auxiliary tank synchronization.
-
Maintenance Features: Battery isolator switch, oil drain pump (sump pump), and full engine protection sensors.
DIMENSIONS & WEIGHT
-
Length: 335 cm
-
Width: 120 cm
-
Height: 215 cm
-
Weight: 2,540 kg
